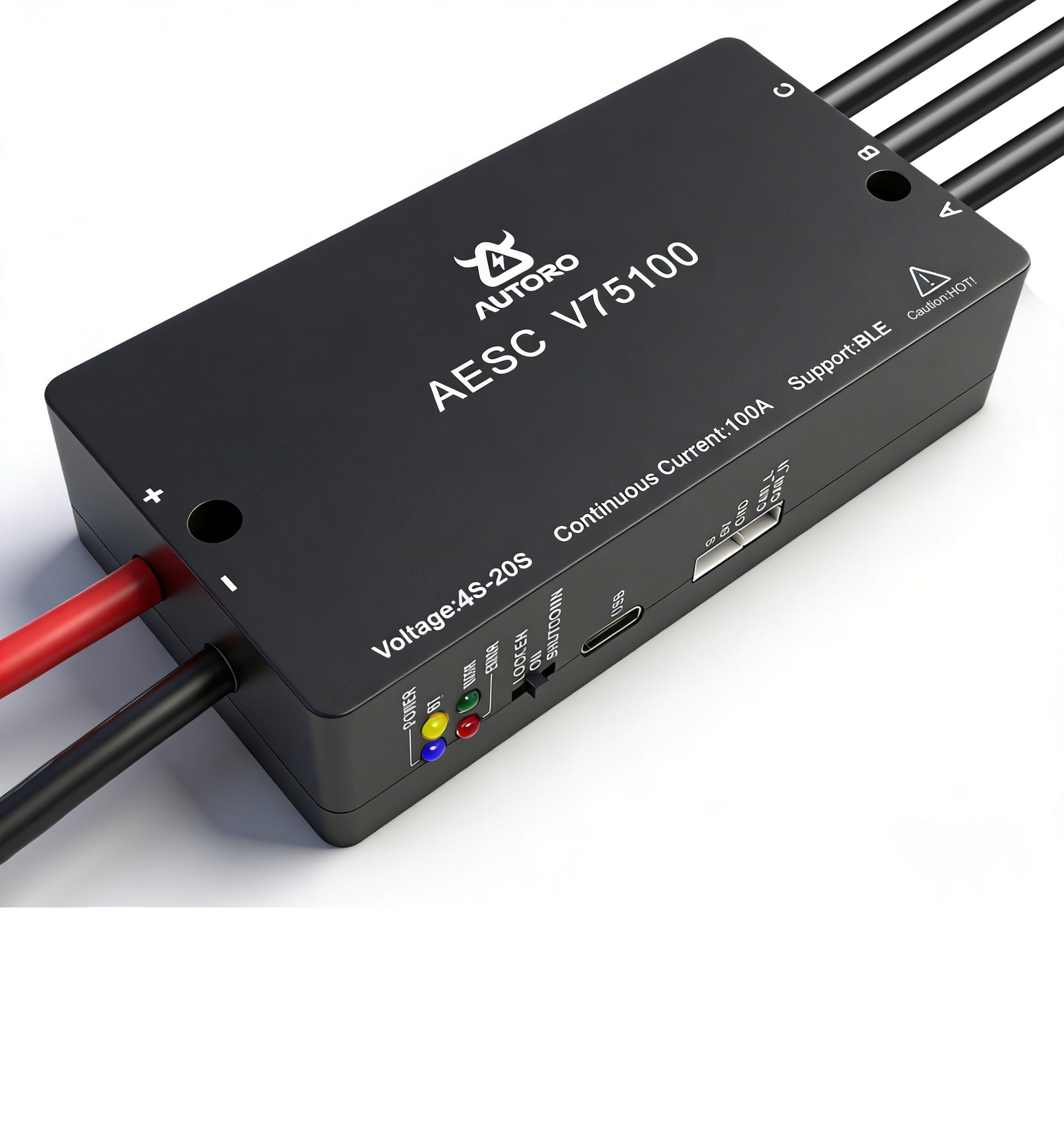

AESC V75100

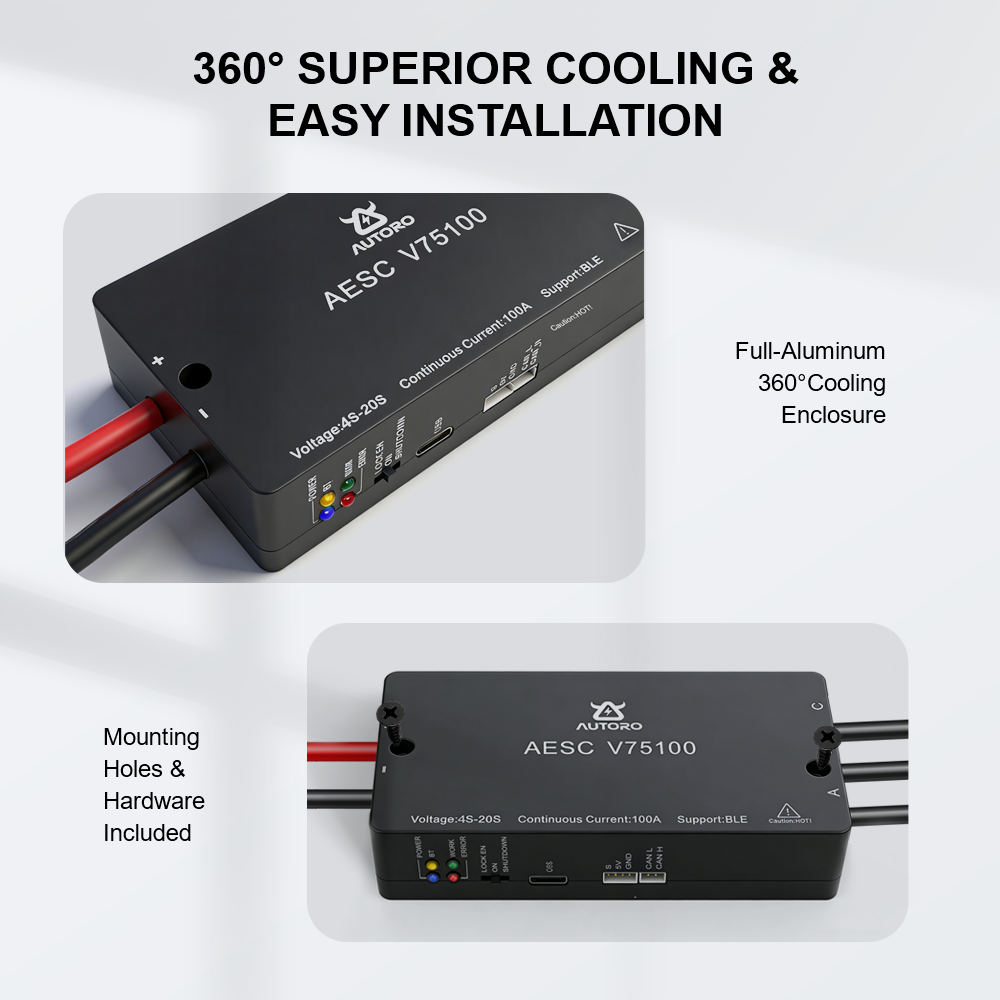

The Autoro V75100 is a high-performance single-motor driver based on the open-source VESC platform, designed for demanding applications that require robust power delivery and flexible control. It accepts a wide input voltage range of 14V–84V, delivers a maximum continuous output current of 100A, and features a full-metal enclosure for enhanced durability and heat dissipation. The V75100 supports sensorless, Hall, and encoder feedback, and can be fine-tuned using VESC‑Tool.

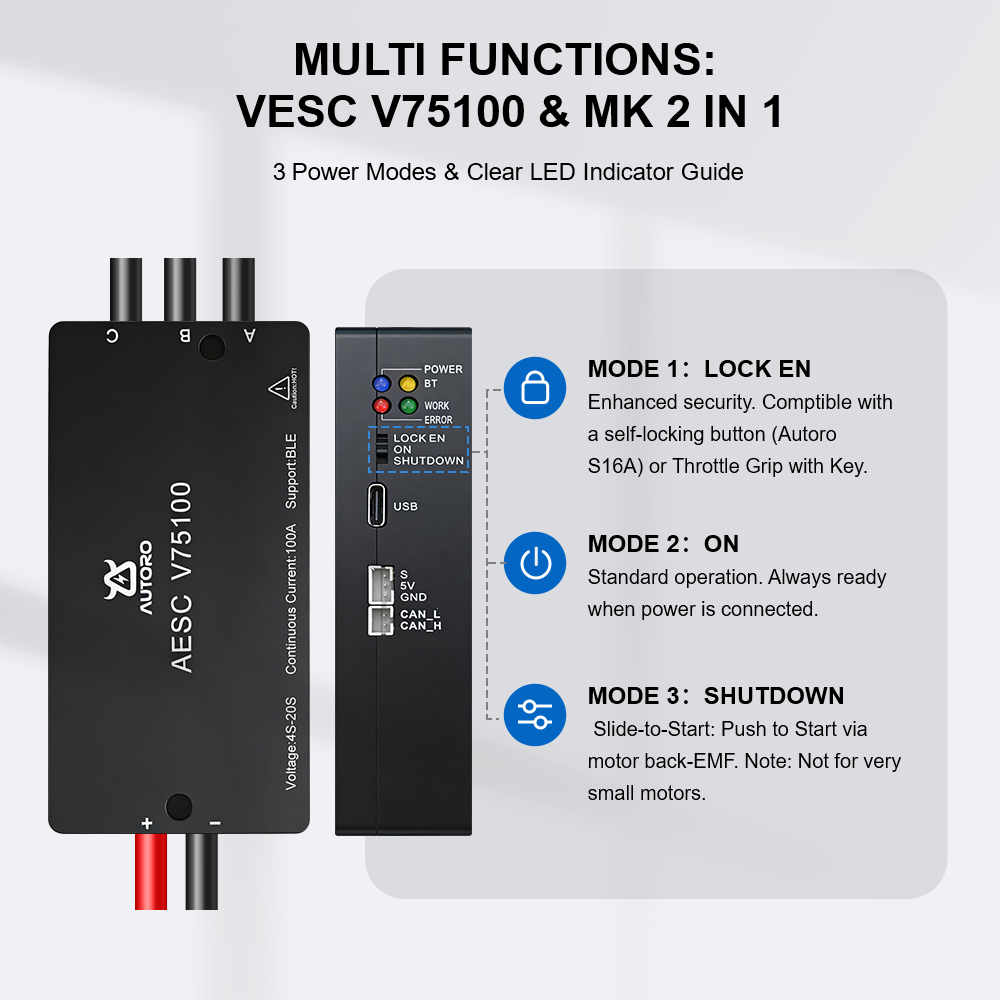

It offers three operating modes for versatile control:
ON Mode – In ON mode, the ESC is always ready to operate as soon as a valid power supply is connected. No additional switch or signal is required to enable the controller; it remains active and responsive to throttle input at all times.
LOCK EN Mode – A self‑locking metal button or a throttle grip with an integrated key lock switch can be used to control power on/off, adding an extra layer of security.
SHUTDOWN Mode – Features a slide‑to‑start function – for example, on an electric skateboard, simply spinning the wheels activates the system and starts the motor.

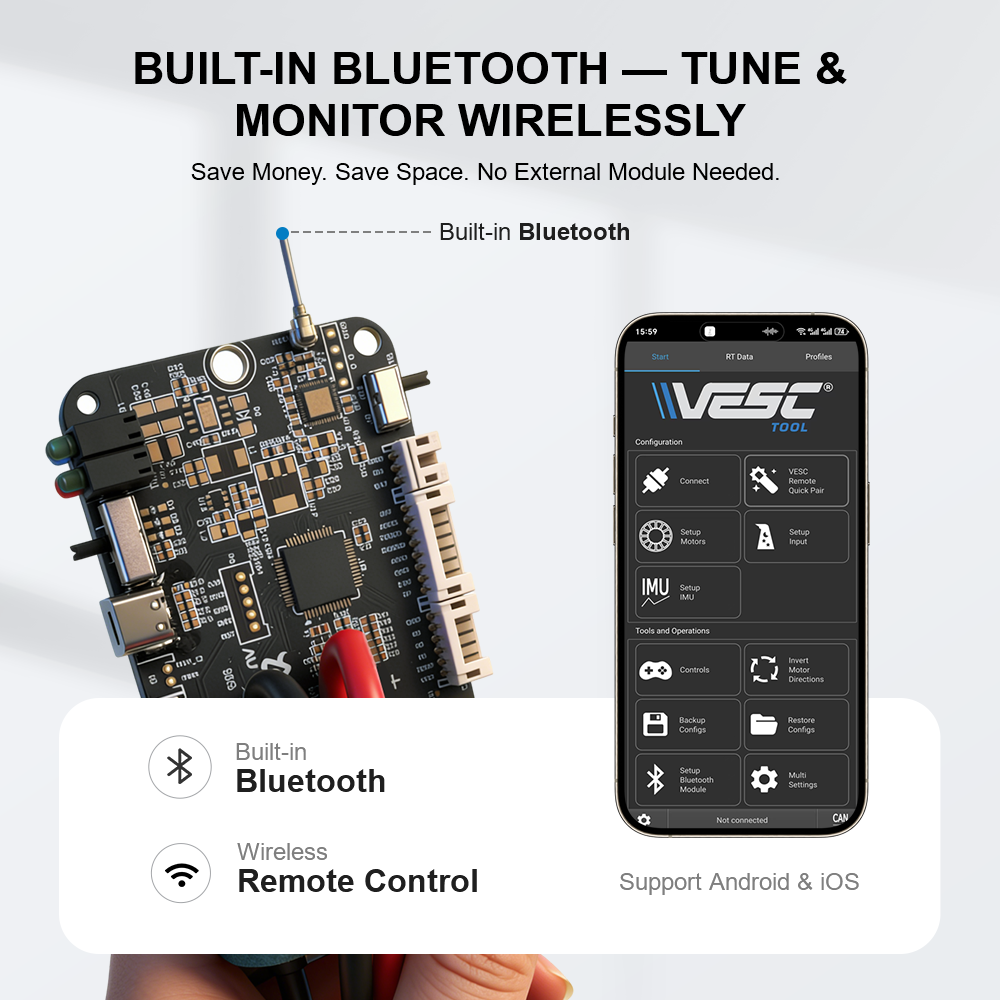

The V75100 also comes with an integrated Bluetooth module for wireless connectivity, enabling convenient monitoring and configuration via mobile devices. It is widely used in electric skateboards, go‑karts, robotics, industrial automation, and other high‑power applications.
